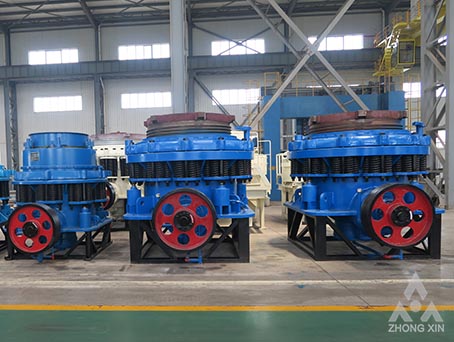

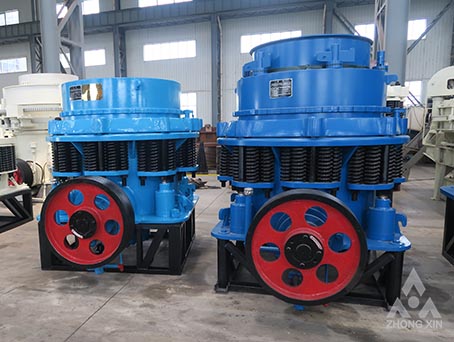

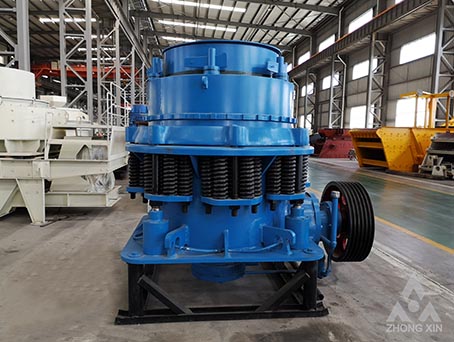

Symons Cone Crusher

【Introduction】:

Type:Secondary Crushing
Input Size:30mm--460mm
Processed Materials:Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc. (for Hard Stone).
Applications:Aggregates Shaping, Mechanism sand, Bituminous Concrete, Metal Mine, Sand Making, Chemical, Road, Railway
Capacity:16-744 TPH.

Chat Online Leave Message

share to

Description

Symons cone crusher is widely used in the industries of metallurgy, building material, road construction, chemical engineering and silicate. It is suitable for crushing all kinds of ores and rocks with hardness of medium or above.
Symons cone crusher consists of frame, transmission device, hollow eccentric shaft, bowl-shaped bearing, crushing cone, springs and hydraulic pressure station for adjusting discharge opening. During operation, the motor drives the eccentric shaft shells to turn around through a horizontal axle and a pair of bevel gear. The axle of crushing cone swings with the force of eccentric shaft shell so that the surface of the crushing wall is close to the roll mortar wall from time to time. In this way, the ores and rocks will be pressed,crooked and crushed.

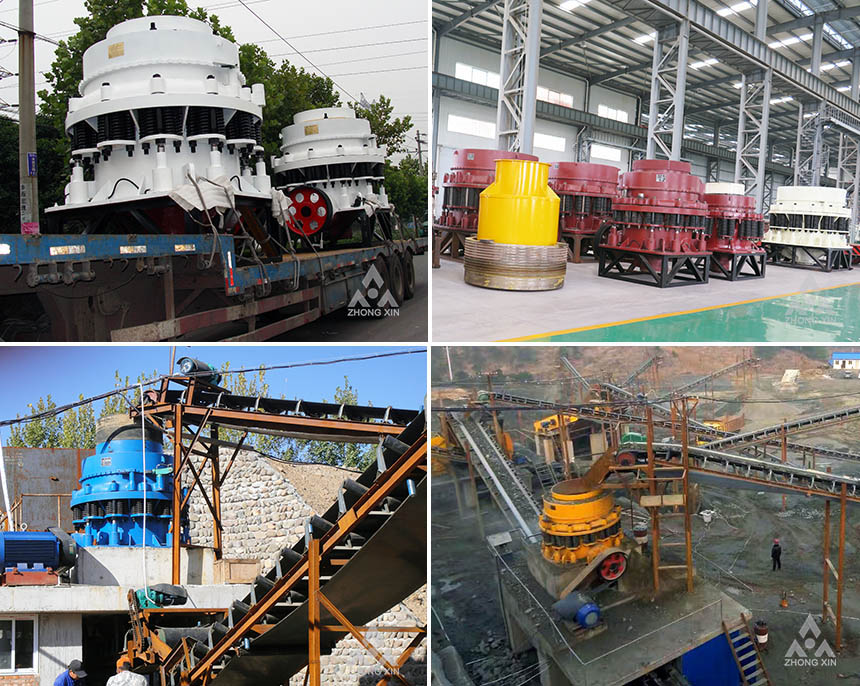

Symons Cone Crusher

Features

1. Overload protection and easy maintenance.
2. Less consumption of wearing parts, low operating costs;
3. Reasonable structure advanced crushing principle and technical data, reliable in operation, low cost in operation;
4. Easy to maintain, reduce the downtime and maintenance costs.
5.Two kinds of crushing chamber structure, suitable for wide range of product size requirement.
6. Rare lubrication, reliable and advanced to improve life;
7. Reliable hydraulic system provides safe and effective overload protection;
8. Spare parts can be changed easily, easy maintenance and operation.

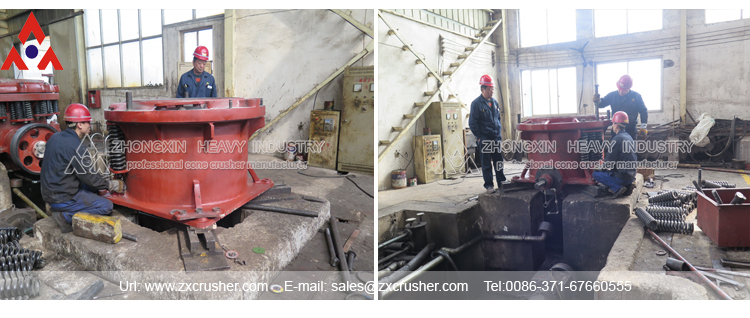

Symons Cone Crusher

Working principle

When it is working, the motor drives the eccentric bearing bushing via spring coupling, transmission shaft and a couple of cone gear wheel. The crushing cone axis is forced to swing by the eccentric bearing bushing, which makes the mantle sometimes close to the bowl liner, and some times far away from the bowl liner. The raw materials are pressed, impacted and finally crushed in the crushing chamber.

Symons Cone Crusher

Specifications

    Type Model Cavity Type Diameter of cone (mm) Adjusting Range of Discharge
    Opening (mm)
    Recommend feeding size when the minimum output size (mm) Max feed
    size (mm)
    Capacity (t/h) Main
    Motor
    Power (kw)
    Weight (kg) Overall
    Dimension
    (L×W×H) (mm)
    2’FT PSGB- 0607 Standard fine 600 6-38 70 60 16-50 22 4500 2195×1158×1651
    PSGB- 0609 Standard medium 10-38 95 80 18-65
    PSGB- 0611 Standard coarse 13-38 110 90 22-70
    PSGD- 0603 Short head fine 3-13 35 30 9-35
    PSGD- 0605 Short head coarse 5-16 50 40 22-70
    3’FT PSGB- 0910 Standard fine 900 9-22 102 85 45-91 75 9980 2656×1636×2241
    PSGB- 0917 Standard coarse 13-38 175 150 59-163
    PSGB- 0918  Standard super coarse 25-38 178 150 118-163
    PSGD-0904 Short head fine 3-13 41 35 27-90 10530
    PSGD-0906  Short head medium 3-16 76 65 27-100
    PSGD-0907 Short head coarse 6-19 102 85 59-129
    4.25’FT PSGB- 1313 Standard fine 1295 13-31 137 115 109-181 160 22460 2983×1866×3156
    PSGB- 1321 Standard medium 16-38 210 178 132-253
    PSGB- 1324 Standard coarse 19-51 241 205 172-349
    PSGB- 1325 Standard super coarse 25-51 259 220 236-358
    PSGD-1306 Short head fine 3-16 64 54 36-163 22590
    PSGD-1308 Short head medium 6-16 89 76 82-163
    PSGD-1310 Short head coarse 8-25 105 89 109-227
    PSGD-1313 Short head super coarse 16-25 133 113 209-236
    5.5’FT PSGB- 1620 Standard fine 1676 16-38 209 178 181-327 220 43270 3941×2954×3771
    PSGB- 1624 Standard medium 22-51 241 205 258-417
    PSGB- 1626 Standard coarse 25-64 269 228 299-635
    PSGB- 1636 Standard super coarse 38-64 368 313 431-630
    PSGD-1607 Short head fine 5-13 70 60 90-209 43870
    PSGD-1608 Short head medium 6-19 89 76 136-281
    PSGD-1613 short head coarse 10-25 133 113 190-336
    PSGD-1614 Short head super coarse 13-25 133 113 253-336
    7’FT PSGB- 2127 Standard fine 2134 19-38 278 236 544-1034 400 86730 4613×3302×4638
    PSGB- 2133 Standard medium 25-51 334 284 862-1424
    PSGB- 2136 Standard coarse 31-64 369 314 1125-1814
    PSGB- 2146 Standard super coarse 38-64 460 391 1252-1941
    PSGD-2110 Short head fine 5-16 105 89 218-463 89500
    PSGD-2113 Short head medium 10-19 133 113 404-580
    PSGD-2117 Short head coarse 13-25 178 151 517-680
    PSGD-2120 Short head super coarse 16-25 203 172 580-744
