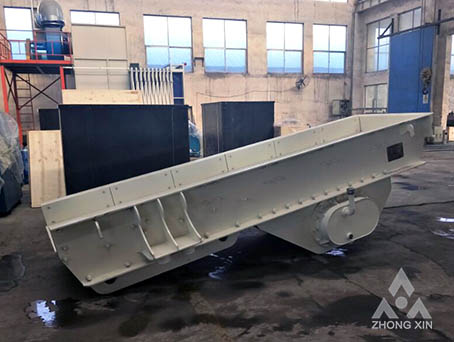

Vibrating Feeder

【Introduction】:

Type:Necessary Auxiliary Equipment.
Input Size:0mm--1000mm.
Processed Materials:Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc.
Applications:Aggregates Shaping, Mechanism sand, Bituminous Concrete, Metal Mine, Chemical, Road, Railway,Metallurgy, Construction, Highway, Water Conservancy.
Capacity:96-1200THP.

Chat Online Leave Message

share to

Description

Vibrating Feeder is a kind of linear direction feeding equipment. It features smooth vibrating, reliable operation, long service life and being suitable for feeding. Vibrating feeders are widely used in mining, building-material, silicate andchemical industry in the crushing and screening plants.In the Sand-Stone production line, vibrating feeder can send materials to crusherevenly and continuously and at the same time, it can screen materials roughly.Vibrating feeder can be used in these areas such as metallurgical industry, coal mining industry, mining-selecting, building, chemical and grinding industry, etc.

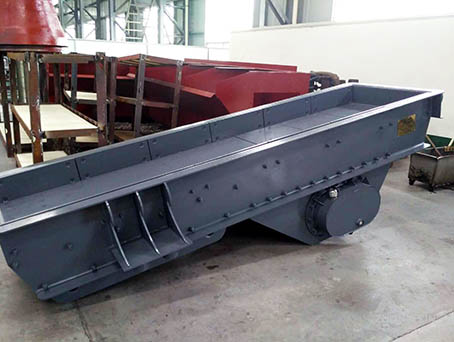

Vibrating Feeder

Features

1. High vibrating force with unique eccentric structure.
2. Adopt advanced construction, making the vibrating force powerful.
3. The beam and case of the screen are connected with high strength bolts without welding.
4. Adopt tire coupling and soft connection makes operation smooth.
5. High efficiency, easy maintenance, sturdy and durable.

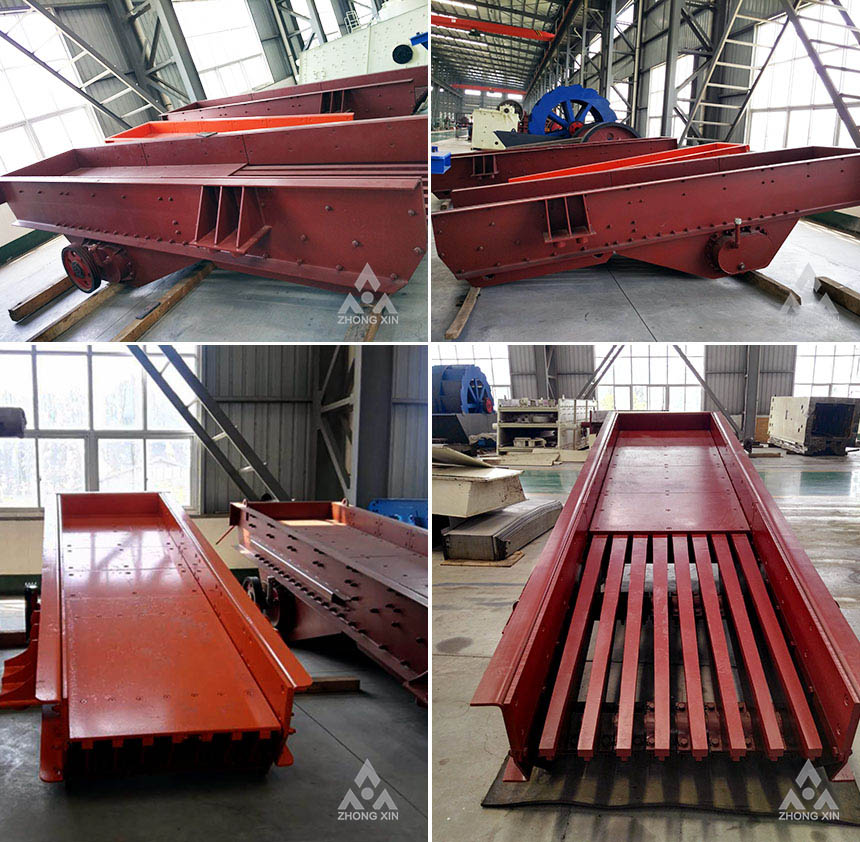

Vibrating Feeder

Working principle

Vibrating feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gearsare jogged. When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to producea linear huge power which forces the feeder to vibrate. Through the vibration,the materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller parts will fall down, and avoiding the furthercrushing, so screening purpose can be reached.

Specifications

Model
Max Feed Size(mm)
Capacity (t/h)
Motor Power (L*W*H) (kw)
Overall Dimensions (mm)
Weight (kg)
Size of Funnel(mm)
ZSW-380*95
500
96-160
11
3882*2224* 2121
4082
3800*950
ZSW-490*95
500
120-240
15
4957*2277* 2150
5004
4900*950
ZSW-490*110
580
120-280
15
4957*2400* 2150
5320
4900*1100
ZSW-590*110
600
200-350
22
6000*2500* 2150
6130
5900*1100
ZSW-600*130
750
400-560
22
6082*2580* 2083
7800
6000*1300
ZSW-600*150
1000
800
30
6627*2350* 3068
12110
6000*1500
ZSW-600*200
1000
1200
37
6436*3853* 3014
18650
6000*2000
