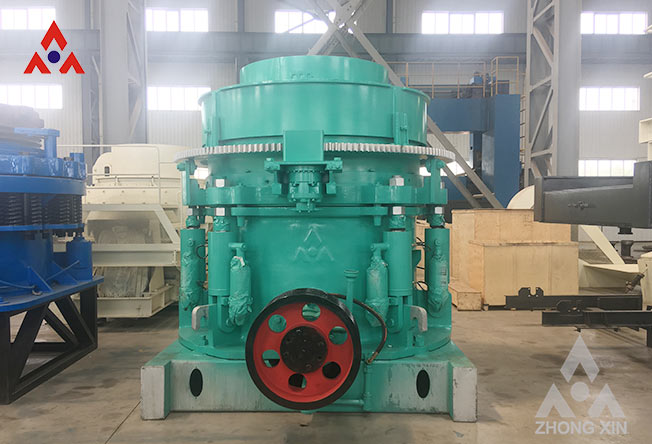

Cone crusher is a commonly used equipment in crushing production line, which is widely used in chemical industry, construction, road construction and other fields. Adopting the principle of laminated crushing, the finished product has good grain shape, less stone powder, and high production efficiency. In addition, the size and shape of the cone crusher can be adjusted by adjusting the discharge port, so how should the discharge port be adjusted to meet the discharge demand?

The size adjustment of the outlet of the cone crusher is completed by adjusting the adjustment ring of the equipment and the customized support sleeve bushing. The upper part of the cone crusher is provided with a support sleeve connected with the spring and the body. The support sleeve has a serrated thread and the adjustment ring In the thread, by rotating the adjusting ring, the fixed umbrella plate can be raised and lowered in the height direction, thereby adjusting the discharge granularity of the discharge port.

 After the discharge port of the cone crusher is adjusted, the adjusting ring can be slightly lifted, and at the same time, the shot blasting with steel wire is put into the crushing chamber at the same time, and the relative position of the lower discharge port is measured along the circumference of the crushing cavity. standard. 　　

1, After reaching the standard, lock the adjusting ring with the lock cylinder, and then start the adjusting ring. 　　

2, When adjusting the discharge port, pay attention to the thread. If the thread is jammed and the adjustment ring rotates, add lubricating oil in time for lubrication. 　
　
3,The adjustment range of the discharge opening is adjusted according to the parameter range specified on the nameplate. 　　

There are many types of cone crushers, and the discharging granularity and granularity of different types are also different. In addition to adjusting the discharging granularity, you can choose the appropriate model according to the required material granularity when selecting the equipment. If you have relevant requirements, you can send us your production scale and requirements to select the appropriate model and configuration.
