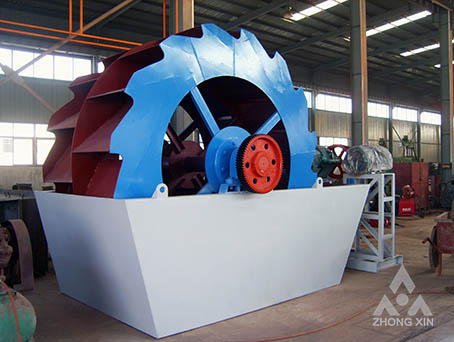

Sand Washing Machine

【Introduction】:

Type:Necessary Auxiliary Equipment.
Input Size:≦10 mm.
Processed Materials:Limestone, River Gravel, Granite, Basalt, Quartz, Iron Ore, Diabase etc.
Applications:Sand Washing, Aggregate Field, Concrete Mixing Plant, Dry Mortar Plant Desulfurization, Quartz Sand etc.
Capacity:20--180THP.

Whatsapp/Wechat:+86-13676922906

Chat Online Leave Message

Description

Sand washer is widely used for the washing of the material sand quarry, mining,building materials, transportation, chemical industry, water conservancy and hydropower, concrete mixing station,etc.

Its novel seal structure and reliable gearing ensure the cleaning and dehydration effects. The sand washer is a kind of high efficiency sand washing equipment operated with sand maker. This series of sand washer features the following advantages: rational structure, convenient maintenance, great handling capacity, low power consumption and high washing cleanliness.

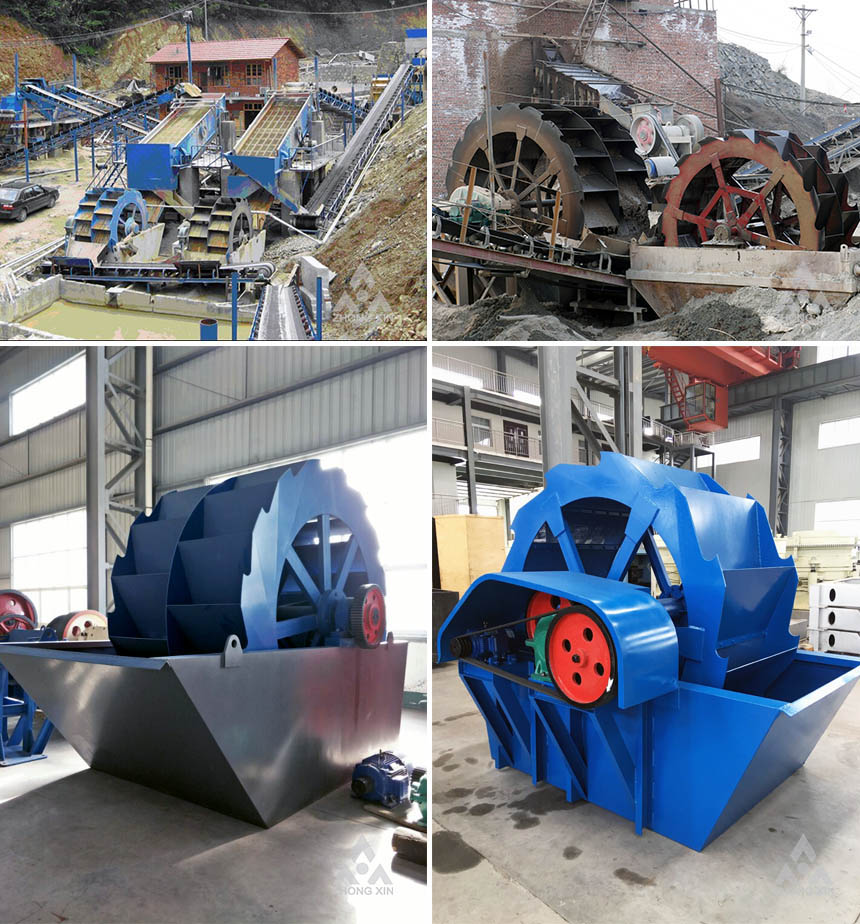

Sand Washing Machine

Features

1. .Simple structure, convenient to repair
2.High processing capacity and low power consumption
3.Low wear-parts consumption, low cost
4. There are no other wearing parts except the screen mesh.
5. It features of long service life and few times for maintenance.

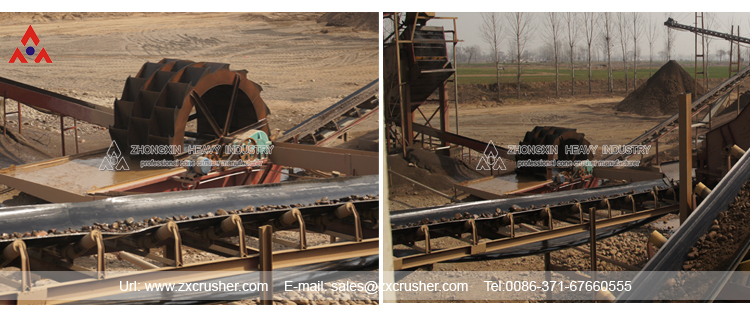

Sand Washing Machine

Working principle

sand washing machine drives the impeller in the water groove to move like a circle transmitted by electric motor and decelerator, and then mixes, overturns, cleans and discharges the sand or slag pellets in the water groove.

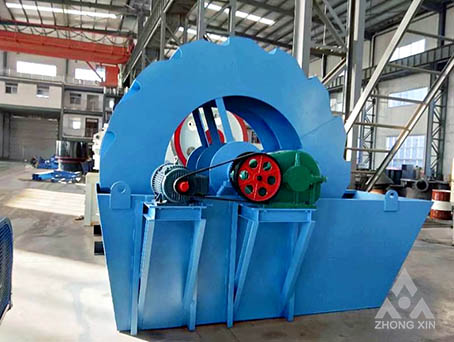

Sand Washing Machine

Specifications

Model Screw diameter
(mm)
Length of Chute (mm) Max feeding size
(mm)
Capacity
(t/h)
Speed (r/min) Power
(kW)
Water Consumption
(t/h)
Overall dimension
(L×W×H)
(mm)
Weight
(t)
XL508 508 6705 ≤10 20 38 5.5 6-60 8000x2343x1430 2.67
XL610 610 7225 ≤10 40-50 32 7.5 6-63 8000X2050X1400 3.8
XL762 762 7620 ≤10 50-75 26 11 9-63 8545X2650X3862 5.23
XL920 920 8026 ≤10 100 18 11 10-80 8715X1632X2075 4.6
2XL920 920 8026 ≤10 150-180 18 11*2 20-160 8715X2602X2075 7.9
XL1115 1115 8532 ≤10 175 18 15 20-150 9231X1833X2126 5.6
2XL1115 1115 8532 ≤10 200-250 18 15*2 40-300 9231X2995X2126 10


Model Bucket wheel diameter
(mm)
Max feeding size
(mm)
Capacity
(t/h)
Speed
(r/min)
Power
(kw)
Overall dimension
(L×W×H)
(mm)
Weight
(t)
XS2600 2600 ≤10 20-50 2.5 5.5 3550X2080X2650 2.67
XS2600II 2600 ≤10 30-70 2.5 5.5 3550X2080X2650 2.9
XS2800 2800 ≤10 50-100 1.2 11 39641x21371x2895 3.98
XS3200 3200 ≤10 80-120 1.2 15 4346x2934x3345 7.27
XS3600 3600 ≤10 120-180 1 15 4355X4505X3810 9.43
