What are the differences between a single-cylinder cone crusher and a multi-cylinder cone crusher?

2024-09-14 10:01:00

Cone crushers have a relatively strong crushing force and can process many kinds of hard stones, such as granite, river pebbles, quartz, iron ore, etc. However, there are single-bar cone crushers and multi-cylinder cone crushers. Sometimes customers have questions about how to choose? The following content lists the differences between single-bar cone crushers and multi-cylinder cone crushers:

1. Comparison between the components that provide crushing force.

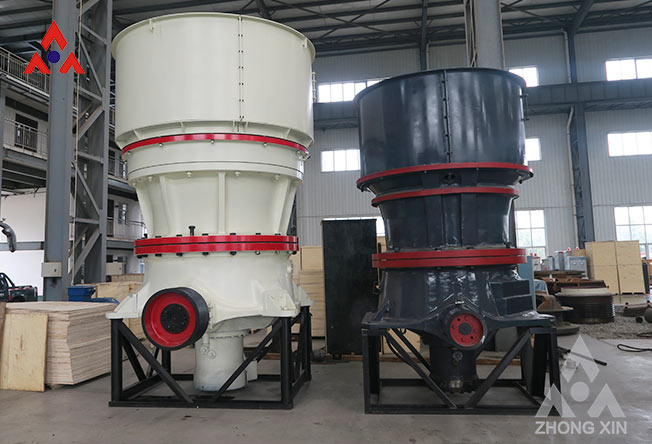

(1) Single-cylinder cone crusher: Its main shaft is combined with the moving cone, supported by a bowl-shaped tile, and the eccentric sleeve drives the main shaft to provide crushing force.

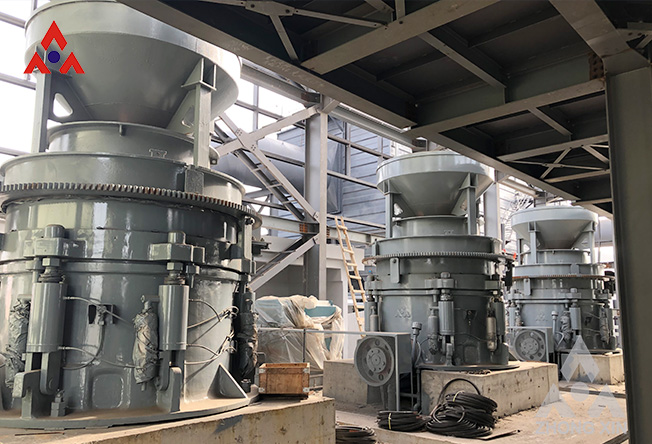

(2) Multi-cylinder cone crusher: Its main shaft is thick and short, and the diameter can be designed to be very large. It is directly supported by the frame, and the eccentric sleeve drives the moving cone to provide crushing force.

2. What are the differences between these two structures?

(1) Horizontal cone crusher: upper frame, lower frame, transmission shaft, moving cone, hydraulic cylinder, eccentric sleeve

(2) Multi-cylinder cone crusher: support sleeve, lower frame, transmission shaft, moving cone, adjustment ring, eccentric sleeve.

3. Comparison of the crushing effects of the two.

(1) Single-cylinder cone crusher: better medium crushing effect, large throughput, better product particle shape, and rich applicable materials.

(2) Multi-cylinder cone crusher: better fine crushing effect and better layered crushing effect.

4. Differences in the use and maintenance of the two

(1) Single-cylinder cone crusher: only one hydraulic cylinder, simpler and more compact structure, lower failure rate, convenient maintenance, and more obvious long-term use effect.

(2) Multi-cylinder cone crusher: full hydraulic protection and adjustment device, which can save a lot of manpower and material resources.

5. Comparison of their productivity.

(1) Single-cylinder cone crusher: when crushing soft ores and weathered ores, the single-cylinder cone crusher has a large processing capacity and is more advantageous.

(2) Multi-cylinder cone crusher: when crushing medium and high hard ores, the multi-cylinder cone crusher is more suitable.
