How to replace the motor of the cone crusher

2019-12-19 15:29:09

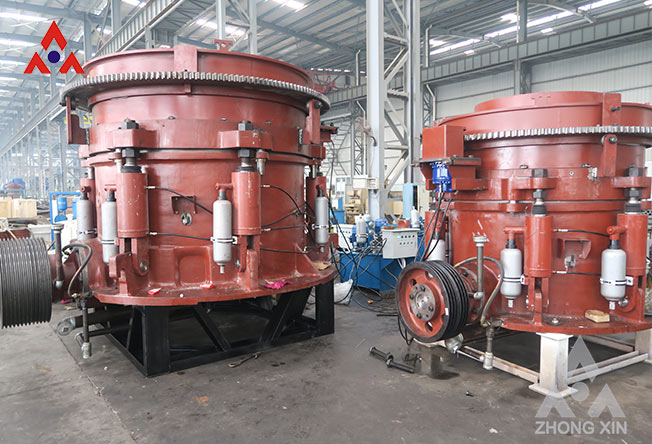

Jiaozuo Zhongxin Cone Crusher has the advantages of simple operation and wide application range. It can be installed and used in the factory building, steel frame or concrete foundation, and the installation applicability is also wide. From crushing, fine crushing to ultra-fine crushing, only the crusher is replaced. Cavity can be achieved. Recently, a customer called to say that the motor of the cone crusher has been damaged due to long-term work. How to replace the motor? Below, our company will introduce the method of replacing the motor.

    The * is to disassemble the motor. When disassembling a motor equipped with a brush, the brush should * be taken out of the brush holder of the cone crusher. If the DC motor is removed, mark the center of the brush to avoid corresponding errors.

    Second is to remove the coupling and pulley. When disassembling the coupling and pulley of the cone crusher, you need to add lubricating oil in the gap on the motor shaft of the pulley to facilitate removal. If the shaft and the wheel are tightly matched, the pulley must be heated and used. Cover the shaft with a damp cloth, and then remove the pulley.

   The other is to take out the rotor. When disassembling the rotor of the cone crusher, be careful not to damage the stator coil. If the rotor is not heavy, you can remove it by hand but the rotor is heavy, you should use professional lifting equipment to lift it out, and use steel wire rope to cover the ends of the rotor. Use a lifting device to lift the rotor and slowly move it out, taking care not to damage the coil.

    Jiaozuo Zhongxin recommends finding professional staff to replace it to prevent insufficient professional knowledge from causing irreparable damage to the equipment. If you encounter other problems, you can also call us and a professional technical engineer will answer it for you.
