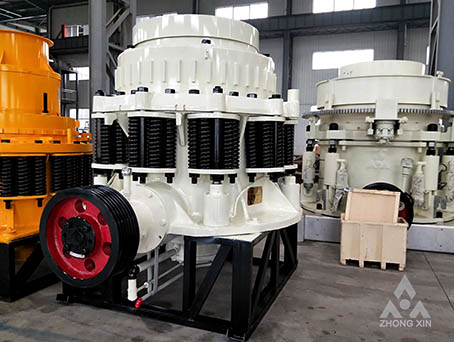

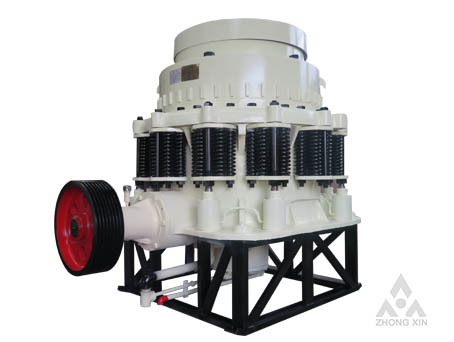

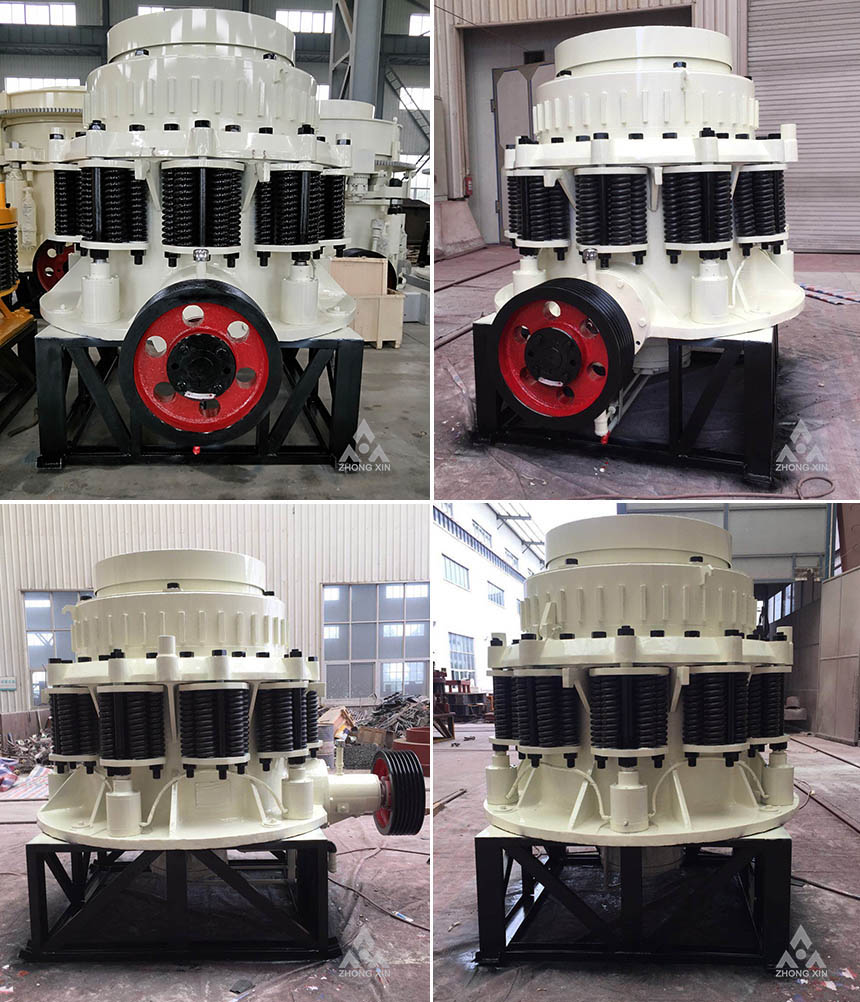

Compound Cone Crusher

【Introduction】:

Type:Secondary Crushing.
Input Size:80mm-300mm.
Processed Materials: Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc. (for Hard Stone).
Applications:Aggregates Shaping, Mechanism sand, Bituminous Concrete, Metal Mine, Sand Making, Chemical, Road, Railway.
Capacity:80-610TPH.

Chat Online Leave Message

share to

Description

compound cone crusher is a high performance cone crusher and it is manufacture by introducing advanced foreign technology with relible performance and superior quality.It has unique hydraulic clearing system,hydraulic opening adjustingfunction,easy for changing movable and fixed plate,dacreasing managemengt and maintence cost,It is widely used for medium and fine crushing of granite,basalt,disbase,cobble,cobblestone,iron,ore etc.which is well received by customers.

Compound Cone Crusher was widely used in mining, concrete factory, sand stone making, etc. This best sell used in mining cone crusher not only improves the production capacity and crushes efficiently, but also widens the applying area, the hardness of materials range from limestone to basalt . The machinery's pressure resistance strength is under 350Mpa.

compound cone crusher

Features

1.It only needs two hours to change the tooth plate, reduces the downtime.
2. Stable running performance and easy operation;
3.The rotation had been improved to the limit based on the old spring cone crusher; the utilization of electric energy becomes more efficient, reduced the cost.
4.More crushing cavity: ZX series spring cone crusher had special design of crushing cavity, customers can choose according to their requirement. High crushing ratio, even final product size, cubic size, mantle and concave even attrition, also have long service life.
5. The rotation had been improved to the limit based on the old spring cone crusher; the utilization of electric energy becomes more efficient, reduced the cost.
6.High crushing ratio, large main shaft eccentricity, larger feeding opening, smaller discharging opening, so the capacity will become more maximization.

Working principle

When working the rotation of the motor through pulley or coupling, drive shaft and the conical portion of the eccentric force moving around the circle next to a fixed point for rotating pendulum movement, so that the cone crusher crushing wall sometimes near and sometimes off the solid adjustment sleeve mounted on rolling acetabular wall surface, the ore in the crushing cavity constantly under attack, pressing and bending and crushing ore.

Bevel gear drive motor through eccentric rotation, so crushing cone make swing movement. crushing cone sometimes close and sometimes away from the fixed cone, to complete the crushing and nesting. Support sleeve and frame body connection is pressed by spring, when the piece of metal and other objects which can not be broken fall within the crusher , compressive deformation of the spring discharge foreign objects, to achieve safety and prevent damage to the machine.

Specifications

Model
Cavity Type
Strokemm
Max.Feeding Size(mm)
Discharging Opening Adjusted Scope(mm)
Capacity(t/h)
Motor Power(kw)
Weight(t)
ZX1650C2-D
Coarse
34
300
35-65
280-610
250
35
ZX1650C-D
Coarse
34
260
30-60
2665-580
250
35
ZX1650Z-D
Medium Coarse
34
240
25-60
240-550
250
35
ZX1650S-X
Fine
28
130
20-45
180-350
250
35
ZX1400C-D
Coarse
30
235
30-60
210-530
220
25
ZX1400Z-D
Medium Coarse
30
215
25-50
200-500
220
25
ZX1400Z-X
Medium Coarse
25
180
22-45
180-475
220
25
ZX1400S-X
Fine
25
100
19-40
130-260
220
25
ZX1200C-D
Coarse
22
180
19-50
110-250
132
16
ZX1200S-X
fine
15
80
16-40
