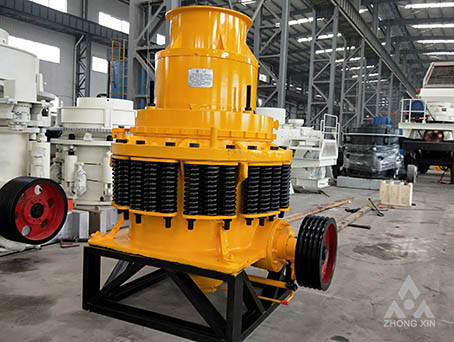

Spring Cone Crusher

【Introduction】:

Type:Secondary Crushing
Input Size:36mm--300mm
Processed Materials:Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc. (for Hard Stone).
Applications:Aggregates Shaping, Mechanism sand, Bituminous Concrete, Metal Mine, Sand Making, Chemical, Road, Railway
Capacity:15-1000 TPH.

Chat Online Leave Message

share to

Description

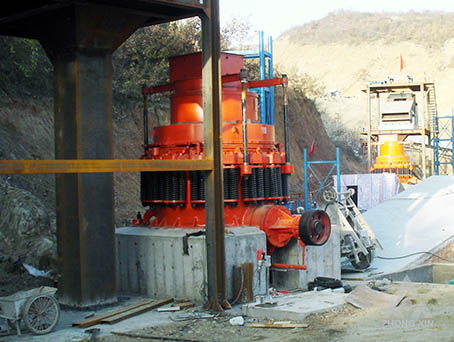

Spring Cone Crusher is a kind of crushing machine commonly used in mining, metallurgical industry, construction, road construction and chemical industry. It can be used to crush hard and medium hard minerals, rocks, iron ores, limestone, copper ores, quartz, granite, sandstones, etc. In a whole production line, usually, it is used for secondary crushing process, or first crushing.

Spring Cone Crusher adopts grease seal to isolate dust and lubricants, therefore ensure its reliable operation. According to customer demand, respectively, using standard type, medium type and short head type for coarse crushing, medium crushing and fine crushing operation.

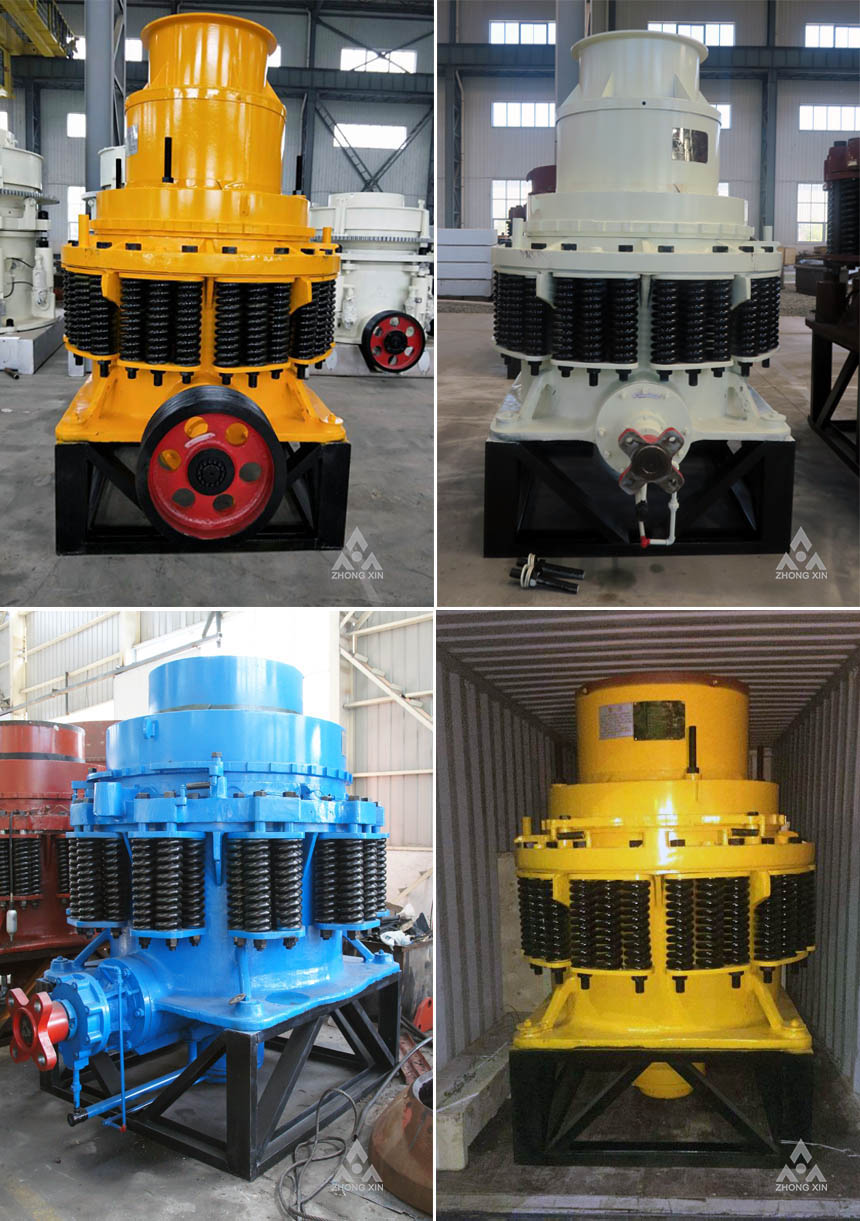

Spring Cone Crusher

Features

1.Strong crushing force; High efficiency; High crushing capacity.
2. Newest improved design with our own technical patent.
3.As spare parts selection and structural design is reasonable, the lifespan will be longer.
4.Different types of crushing chambers to satisfy different customers’ requirement.

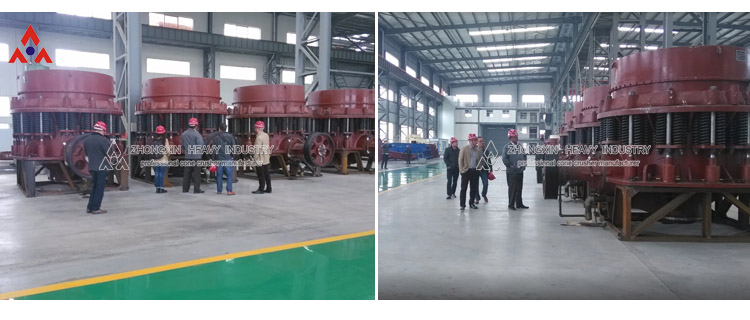

Spring Cone Crusher

Working principle

Spring Cone Crusher is between fixed cone plate and movable cone plate. The motor drives the horizontal axis of the quarry crusher through triangle belt and pulley, the horizontal axis drive the eccentric shaft bush to rotate through gear transmission.

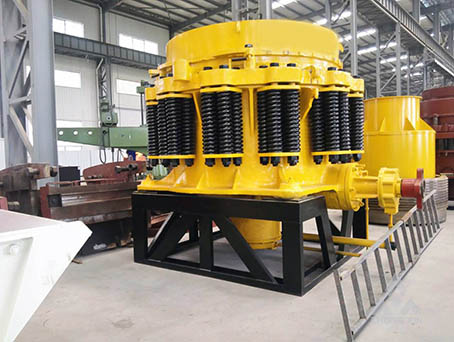

Spring Cone Crusher

Specifications

Type

Dia. of Cone

(mm)

Adjusting Range

of Discharge Opening

(mm)

Max Feed Size

(mm)

Capacity (t/h) Motor Power (kw) Weight (t)

Overall Dimension

(mm)

PYB-600 600 12-25 65 15-25 30 5.5 1740×1225×1940
PYD-600 3-13 36 5-23 30 5.5 1740×1225×1940
PYB-900 900 15-50 115 50-90 55 10.18 1990×1640×2380
PYZ-900 5-20 60 20-65 55 10.19 1990×1640×2380
PYD-900 3-13 40 15-50 55 10.27 1990×1640×2380
PYB-1200 1200 20-50 145 110-200 110 24.7 2805×2300×2980
PYZ-1200 8-26 100 50-150 110 25 2805×2300×2980
PYD-1200 3-15 50 18-105 110 25.6 2805×2300×2980
PYB-1750 1750 25-60 215 280-480 155-160 50.6 3610×2950×4185
PYZ-1750 10-30 185 115-320 155-160 51 3610×2950×4185
PYD-1750 5-15 85 75-230 155-160 50.5 3610×2950×4185
PYB-2200 2200 30-60 300 590-1000 260-280 84 4790×3430×5080
PYZ-2200 10-30 235 200-580 260-280 85 4790×3430×5080
PYD-2200 5-16 110 120-370 260-280 85 4790×3430×4852
