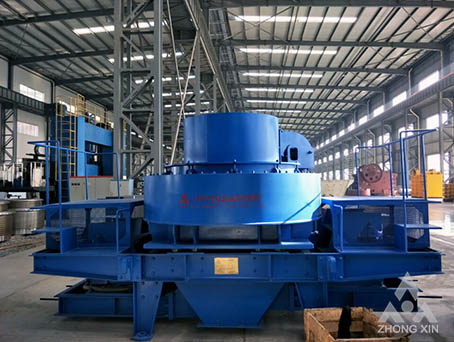

Vertical Shaft Impact Crusher

【Introduction】:

Type:Tertiary Crusher.
Input Size:30mm--50mm.
Processed Materials:Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc.
Applications:Aggregates Shaping, Mechanism sand, Bituminous Concrete, Metal Mine, Chemical, Road, Railway,Metallurgy, Construction, Highway, Water Conservancy.
Capacity:60-450 TPH.

Whatsapp/Wechat:+86-13676922906

Chat Online Leave Message

Description

Vertical shaft impact crusher is widely used in fine crushing and rough grinding of metal, mineral, building aggregate, concrete, anti-fire material, glass raw material, manufactured sand and all kinds of metallurgical slug. It is also can utilized in shaping of high rank road surface.

Vertical shaft impact crusher is widely used in all kinds of minerals. It provides the high quality sand and crushed stone aggregate to the high-speed railroad, high-rise construction, municipal administration construction, water and electricity dam construction, concretes agitation station. It is the most effective machine at present. It is also applicable to crush various stones with different hardness in medium and fine crushing area. It is more advanced in intermediate hard, extra, extra hard and abrasive material crushing.

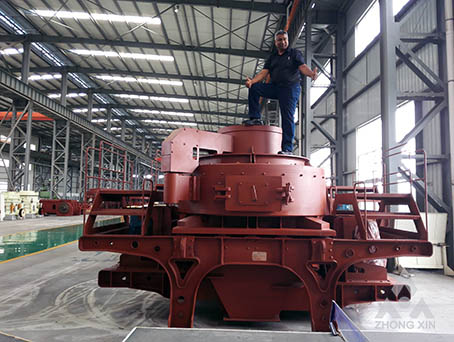

Vertical Shaft Impact Crusher

Features

1.Simple structure , lower operation cost.

2.Strong ability of through the non-crushing material, low effects by the material moisture content.

3.Suitable to crush stones with mid-hardness, high hardness, and super high hardness.

4.Mechanism for the production of sand, the gradation of finished product is in an adjustable fineness modulus.

5. It is suitable to crush midium hard, hard special materials.

6. Excellent product of cubic shape, and small fraction of elongated flaky particle shape.

7.Low weight and various installation, can be installed on mobile.

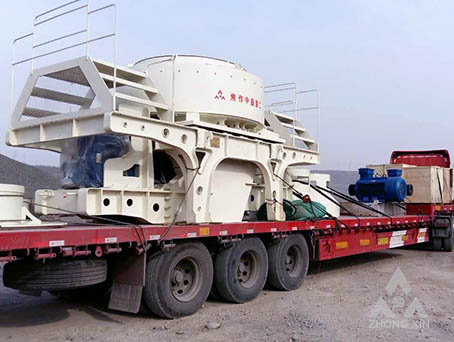

Vertical Shaft Impact Crusher

Working principle

Sand making machinery is also called Sand Maker, which is high-functioned equipment for making sand and shaping,Sand making machine raw material falls down into feed hopper, then enter into impellor through central entrance hole. It is accelarated in high-speed impellor, then is thrown out at speed of 60-75m/s. When it hits impact plate, it is crushed. Final products come downwards though outlet.

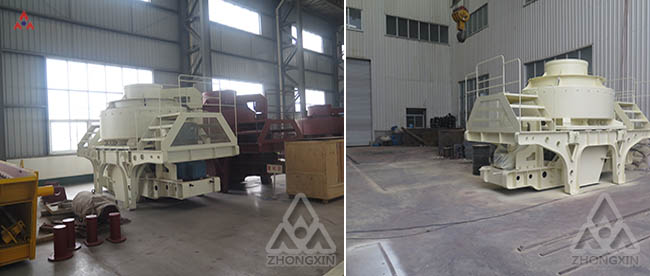

Vertical Shaft Impact Crusher

Specifications

Model VSI 7611 VSI 8518 VSI 9526 VSI 1140 VSI 1145 VSI 1250 VSI 1263
Capacity
(t/h)
Surrounding feed and center feed 120-180 200-260 300-380 450-520 500-640 320-490 545-583
Full center feed 60-90 100-130 150-190 225-260 250-360 260-350 454-486
The max feeding size
(mm)
Soft stone ≤35 ≤40 ≤45 ≤50 ≤50 ≤50 ≤60
Hard stone ≤30 ≤35 ≤40 ≤45 ≤45 ≤45 ≤50
Speed(r/min) 1700-1930 1520-1690 1360-1510 1180-1300 1200-1390 1040-1220 900-1150
Double motor power(kW) 2Х55 2Х90 2Х132 2Х200 2Х220 2Х280 2Х315
Overall dimension
(L×W×H)mm
4100x2250x2315 4160x2300x2476 4540x2500x2911 5000x2716x3117 5450x2900x3300 6200x2830x3820 5700x2980x3530
Weight(t) 8 12 13 18.5 19.5 23 19
Lubrication station Double oil pump motor power(kW) 2Х0.55
Security One dual oil pump works one by one, and the standby oil pump is automatically turned on when the flow is low. High oil temperature, automatic shutdown without oil return,
Air cooler lowers oil temperature, heater warms up oil temperature in winter.
Overall dimension
(LХWХH)mm
1200Х790Х1120
Tank heater power(kW) 2

Model PCL-600
Capacity
(t/h)
Surrounding feed and center feed 8-50
Full center feed 4-25
The max feeding size
(mm)
Soft stone ≤25
Hard stone ≤20
Speed(r/min) 2000-2500
Single motor power(kW) 45
Overall dimension
(LХWХH)mm
2500x1596x2275
Weight(t) 8
Lubrication style Grease lubrication
